COMING SOON

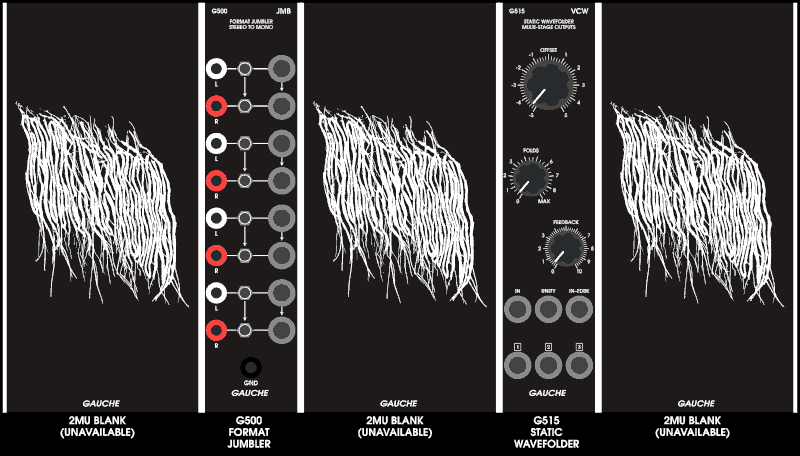

Gauche Electrosound G515 Static Wavefolder Panel graphic

G515 STATIC WAVEFOLDER

Synthesis module in 5U height, DOTCOM/Moog/American format
Depth: ~35mm
Power: +15V @ 10mA, -15V @ 10mA
This module does not use the 5V rail
Control: Folds (input attenuator), Offset, Feedback attenuator
Inputs: 100kΩ impedance, +/-5V nominal, +/-15V accepted
Outputs: 1kΩ impedance, +/-5V nominal, +/-15V likely
Also available in Eurorack format

Gauche Electrosound G500 Format Jumbler Panel graphic

G500 FORMAT JUMBLER

Synthesis module in 5U height, DOTCOM/Moog/American format
Depth: ~35mm
This module is fully passive, and does not draw power nor have input/output impedance.
Bi-directional mono/stereo operation. White "L" jacks support stereo signals on minijack and bigjack. Right channel (Ring) of stereo input will be mirrored to the corresponding Red "R" minijack and bigjack.
Banana jacks are hardwired to the tip signals of the other jacks in the same row.
0V GND is available as a banana jack at the bottom of the module.

Modules available October 2025
